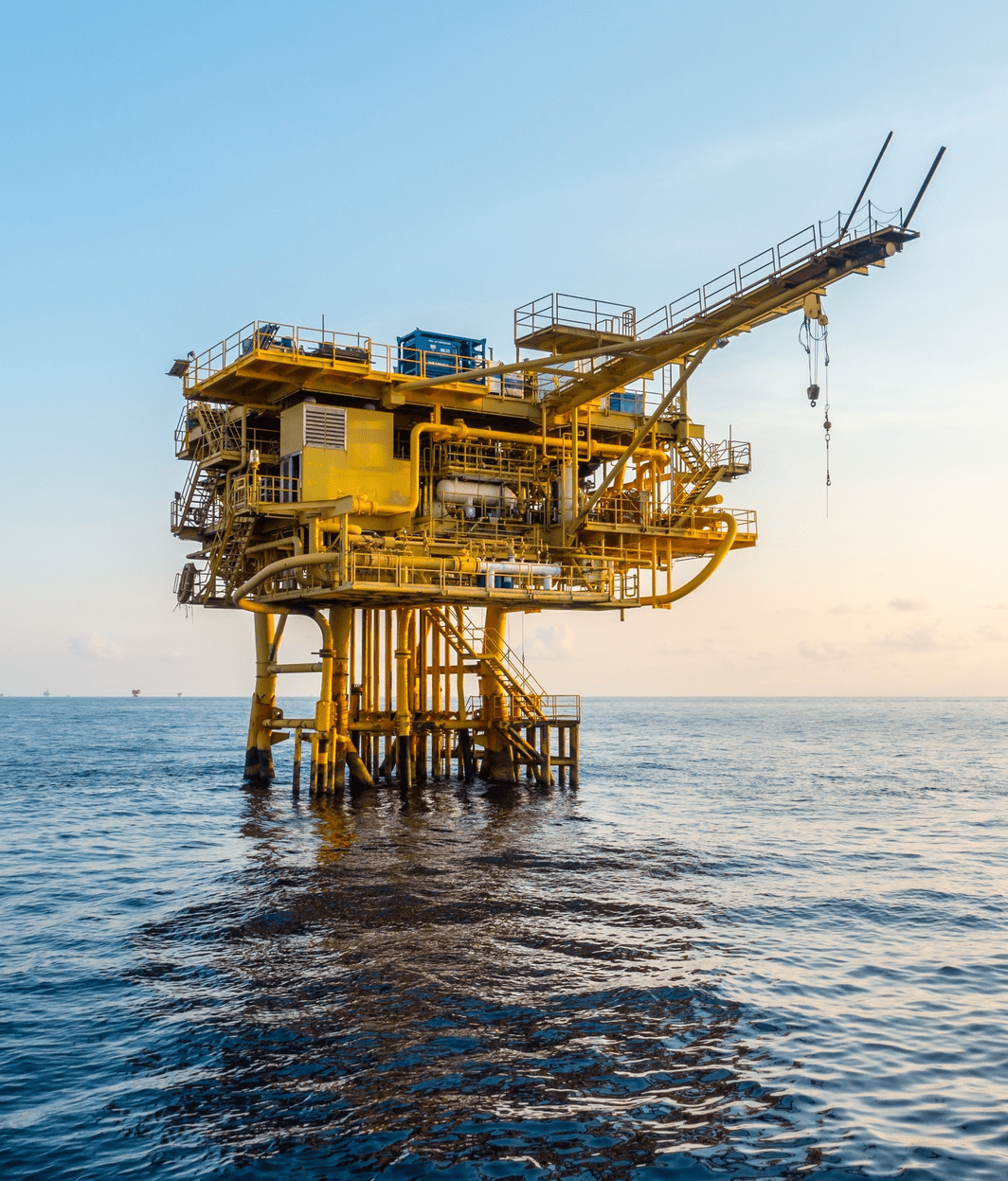

01. Rigs

Below is a few of the large variety of rigs that we have at our disposal.

1400 HP LAND RIG
Type & Rig Move Mode Fast Moving, Electric Drilling Rig
Depth Rating 16,000 foot
Camp 100 men
Mast Lee C. Moore, 142 ft High,
GNC 1,000 Kips
Substructure Lee G. Moore, Raised Floor,
25 ft High, 400 Kips Setback
Draw works Oilwell 840 E, 1400 HP
Rotary Table National C-275
Mud Pumps 2 Oil well A 1400 PT, 1400 HP
Engines 3 Cat D 398 TA and 2 Cat 3512 w/ Power Trailer
Generators 5 GE 752 DC & 2 GE AC
BOP Stack Hydril MSP 20" 2M, Annular
Hydril GK 13.5/8" 5M. Annular
Cameron U, 13.5/8" 5M, 2 Rams
Solid Control 2 Dernck Linear Motion Shaker
Water Maker 2x Meco PEE 300 M3C
Tank Capacity:
Mud Active 1500+ Reserve 1000 bbls
Fuel 1 x 400 bbls
Crude Storage 2 x 500 bbls
Water 2 x 500 bbls
Crane 2x 50 Ton
Forklift 1 x 5 Ton & 1 x 10 Ton
3000 HP Top Drive
Rated Drilling Depth 30,000 ft. with 5" drill pipe.
Substructure Pyramid swing up 37 ft.
Hook Load 1,600,000 lbs.
Rotary Load 1,500,000 bs.
Set Back Load 800,000 lbs
Mast Pyramid open face cantilever 152ft
Drawworks Oilwell E-3000 3000HP 1 5/8" drill line
powered by 2 GE 752 electric motors
Traveling Equipment Block Oilwell-650 Ton
Rotary Oilwell B-375. Powered by 1 GE 752 electric motor
Top Drive National Oilwell, PS-500 A Capacity 500 ton.
Pumps 2-Oilwell A-1700 PT 1700 HP each. Powered by 2-GE
752 electric motors.
Well Control Equipment 13 5/8" Shaffer annular preventer 5000 psi
13 5/8" Shaffer single ram preventer 10,000 pai H2S trim
13 5/8" Shaffer double ram preventer 10,000 psi H2S trim
Cad Oil Field-8 station-390 Gal.
Drill String 5 grade G drill pipe.
5 HWDP.
6 1/2" drill collar.
8 1/4" drill collar.
9 1/2" drill collar.

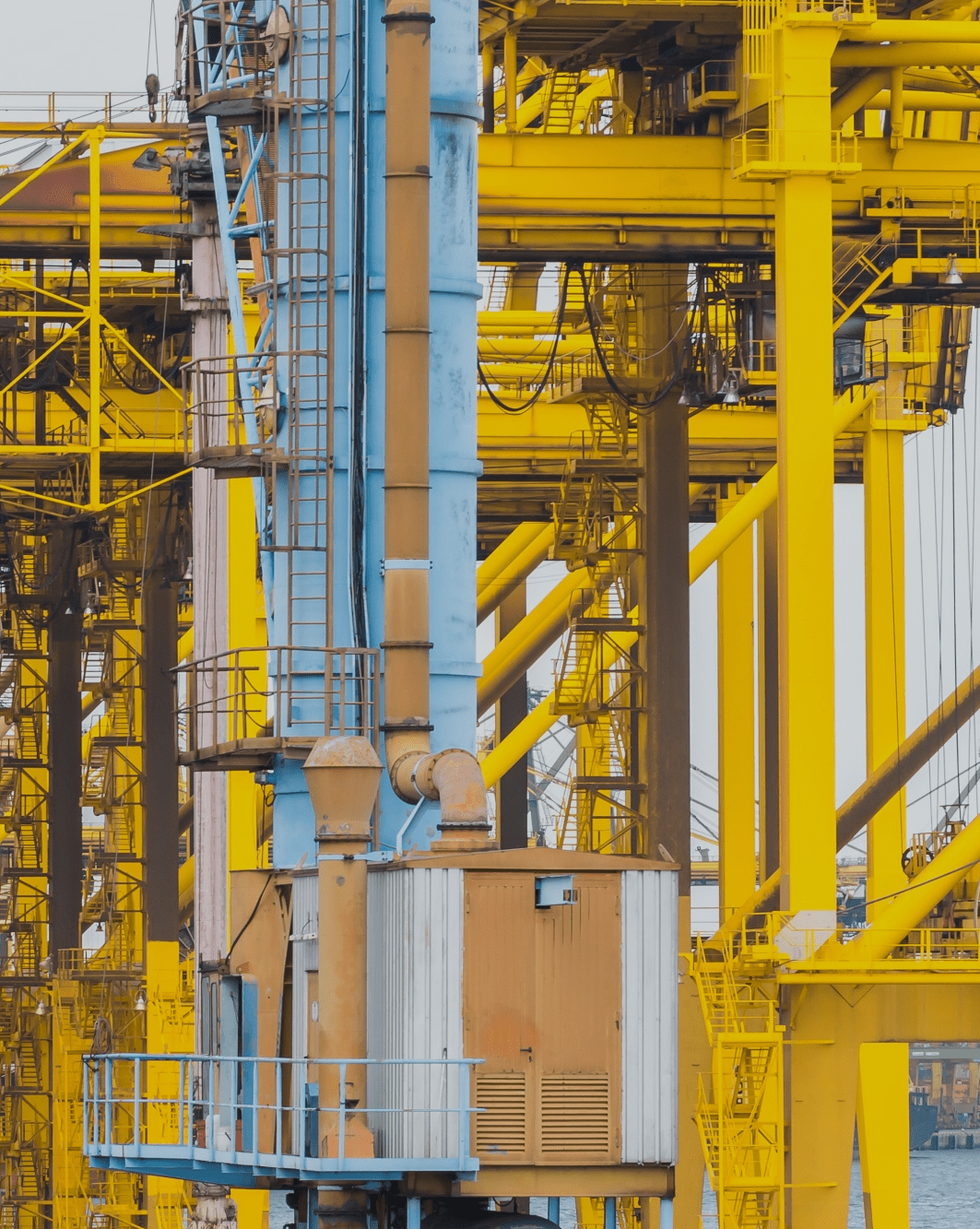

02. Pipes – Coating, lining and laying

Pipes

In Piping our team has proved their skills in small bore to large bore, shop fabrication to site erection, without depending upon whether it is rack, underground or aboveground. Also our team has been gone though different schedules and materials such as carbon steel, Stainless Steel, GRP, HDP, PVC etc. In Mechanical Equipment, from foundation to final alignment has been done.


Coating and Lining Division

Our Coating and Lining Division is capable to execute large scale projects of:

  • Blasting and painting/coating of internal and external surfave for tanks, vessels, structural and piping.
  • Blasting and Application of Glass Flake epoxy coating for tanks and vessels.
  • Blasting and Application of Fibreglass Lining for tanks and vessels.

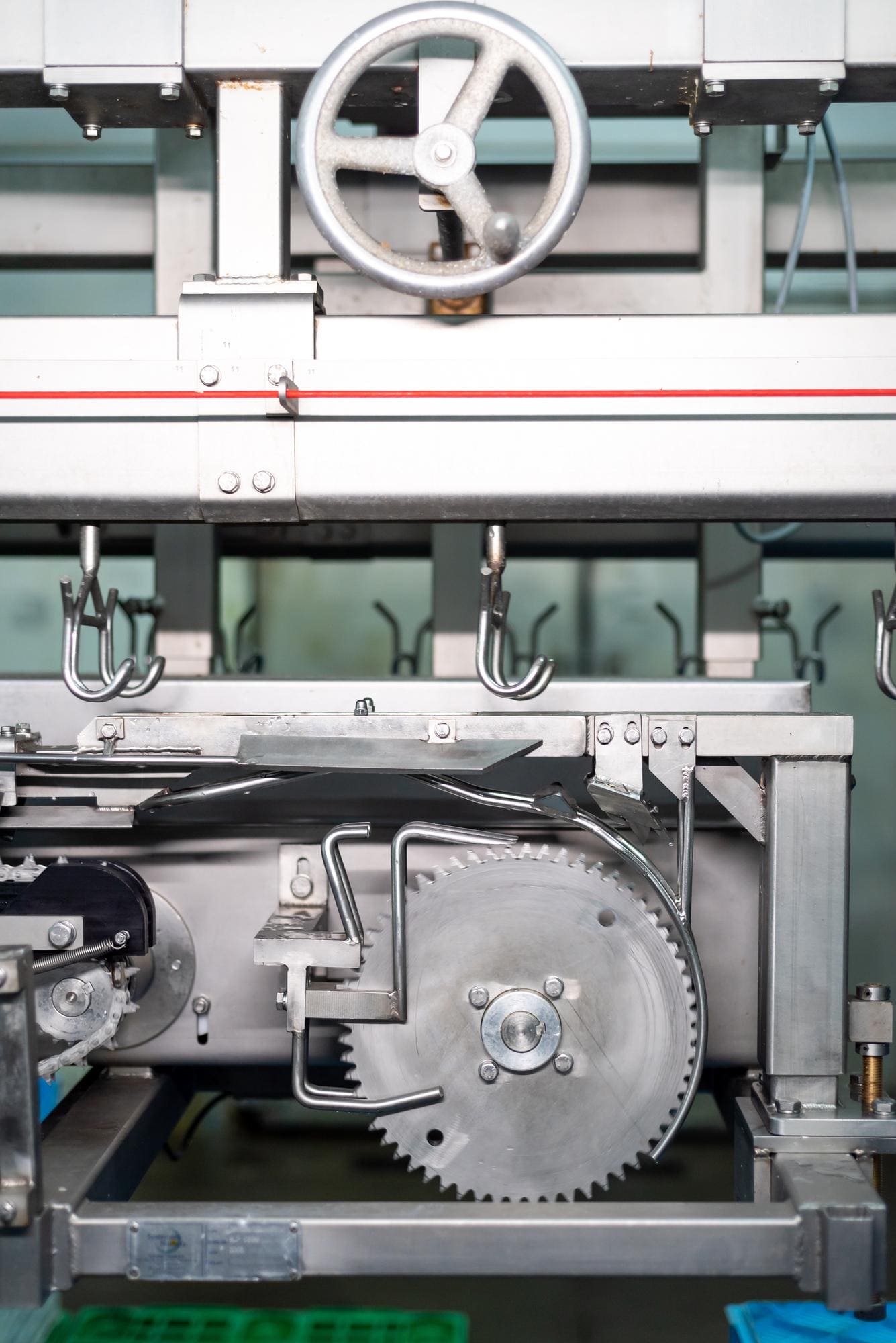

03.Process and Mechanical Equipments

Mechanical Equipments

In Piping our team has proved their skills in small bore to large bore, shop fabrication to site erection, without depending upon whether it is rack, underground or aboveground. Also our team has been gone though different schedules and materials such as carbon steel, Stainless Steel, GRP, HDP, PVC etc. In Mechanical Equipment, from foundation to final alignment has been done.

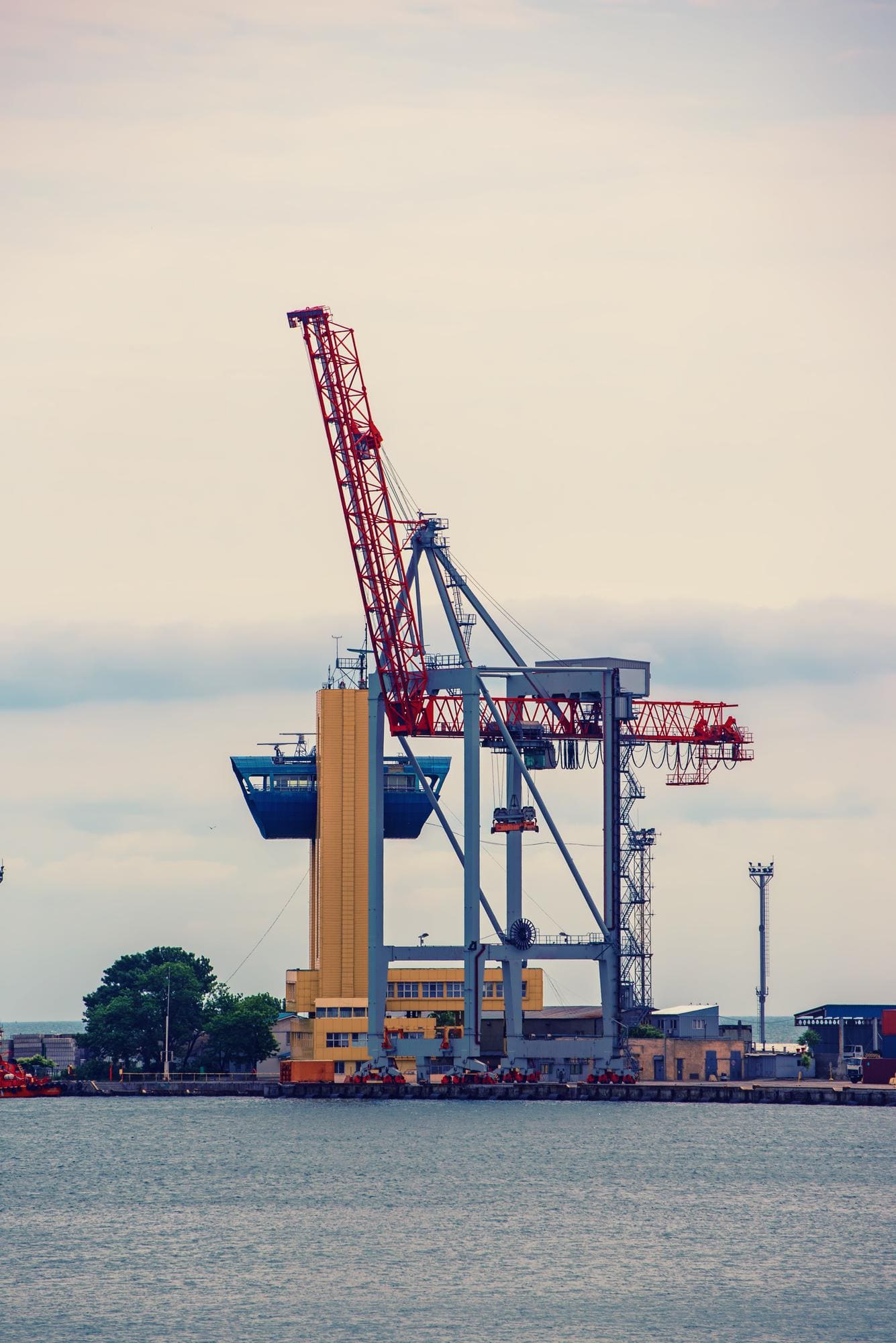

04.Dredging

United Nation G.T.C. entered into a Joint Venture Association with the leading dredging company "Sea Eagle Dredging Marine Infrastructure" to allow United Nation G.T.C to expand into the dredging division. We employ all sort of highly sophisticated and mechanized machines that act as suction devices that can be utilized to deepen harbors as well as to clear waterways. The equipment are efficiently deployed in various mechanisms performed in underwater mining. We are among the leading Dredging Companies that delivers quality fined material possessing multiple utilities and supreme characteristics to present them as unique high load vessels. Our tendency to present immense level of specialization in fabricating sophisticated Dredges of superlative properties has been our main objective. Goods manufactured by skillful engineers and competent workers could best deliver work catering to clean, widen and deepen the sea with help of sophisticated dredges.

Our Services Include:

  • Capital Dredging,
  • Maintenance Dredging
  • Trenching & Pipe laying
  • Reclamation & Beach Replenishment
  • Foundation support for Dry Docks
  • Placing underwater armoire / stones
  • Cleaning of Lakes, Widening and Deepening of rivers
  • Shifting and Laying of Buoys
  • Construction of Warf
  • Construction of Breakwaters
  • Supply of floating equipment
  • Soil investigation for construction of Jetty and Wharfs
  • Pre & Post Dredging Survey and Quantity Survey for Reclamation
  • Oceanography & Hydrological studies and analysis

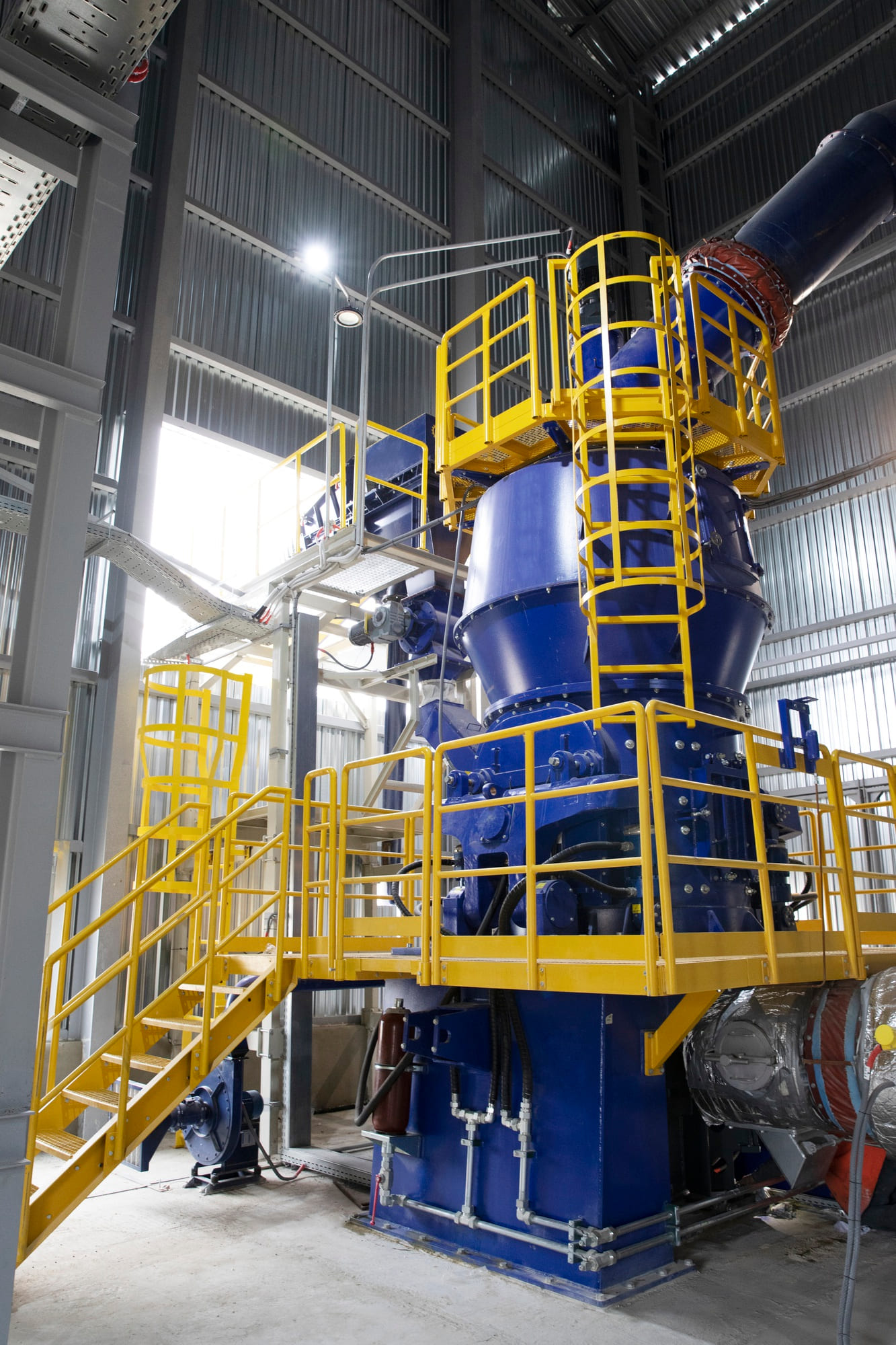

05.Automated Sand- Blasting

Wheel Blasting Machine, Garnet Recovery system and Dust arrester are the unique features of our Automated Blasting Division.

  • Blast the steel plate up to 3 meter width.
  • Blast the external surface of fabricated pipe spools (Three dimensional)
  • Blast fabricated heavy and light duty structures.
  • Wheel blast Machine has a feed opening size of meters width and 1.7 meters height.
  • Blast a surface area of 1500 Sq.M Plate in 8 Hours.
  • Blast up to an area of 800 Sq.M pipe spools and structure in 8 hours.
  • Blasting without atmospheric pollution and in an eco-friendly manner.
  • Leasing of Wheel Blasting Machine with Operator.

Have a project in mind? Let’s get to work.
